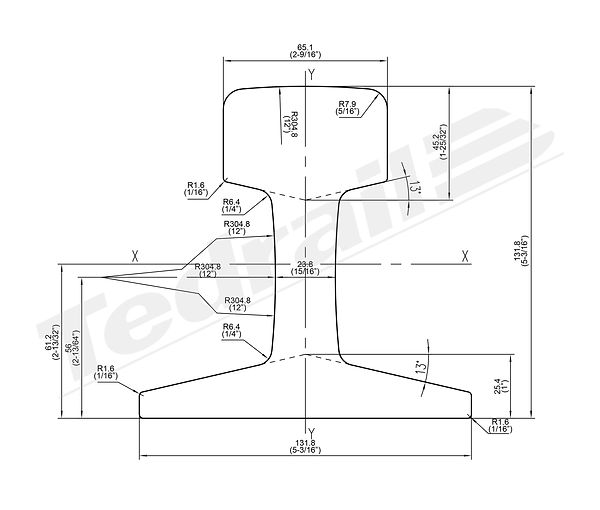

Rail CR105
Type of Rail
CR104
Standard
Dimensions mm
H
B
C
D
E
Section S cm²
Mass m kg/m
American
131.80
131.80
65.10
45.20
23.80
66.40
52.09
Manufactures in accordance with AREMA and ASTM specification for standard carbon applications.
Standard rail lengths are furnished also in 20, 40, and 60 feet. Other lengths are available upon request.
